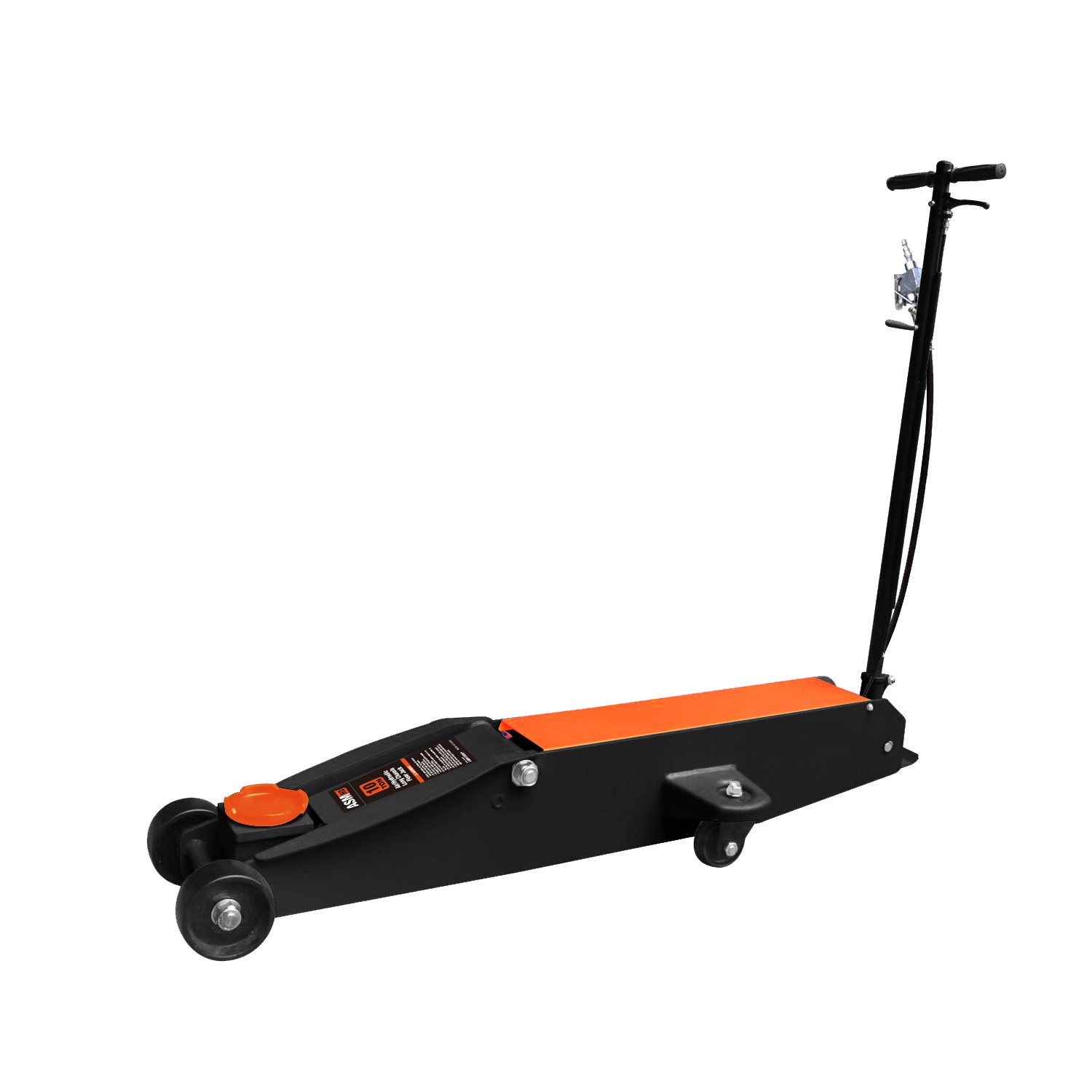

10 Ton Hydraulic Long Chassis Jack - ASM5525
Model: ASM5525
Features
New cable driven release lever design allows easy and controlled descent.
Handle locks in vertical, 45 degree or horizontal positions and is controlled with handle mounted lever.
Under no load, the saddle quickly gets to the vehicle lift point in 3 strokes or less on 5T models and 5 pumps or less on 10T models.
Internal valve controlled descent speed provides additional safety when lowering a vehicle.
Heavy-duty performance for garages, equipment dealers, commercial service and more.
Welded pump and cylinder construction provides increased strength and trouble free long operating life.
Chrome plated ram for exceptional rust resistance.
Wiper seals protect hydraulic system from contaminates.
Crowned swivel rear casters provide smooth maneuvering and positioning.
Overload and bypass safety valves prevent use beyond the rated capacity and over-extension of the ram.
Meets or exceeds ASME PASE-2019 and CE standards.
Specifications
Capacity (Ton): 10
Minimum Height (in): 6-5/16
Maximum Height (in): 2-59/16
Jack Length (in): 59-5/16
Package Size (in): 62-13/16 x 21-5/8 x 14-9/16
Net Weight (lb): 251.9
Gross Weight (lb):298.3
