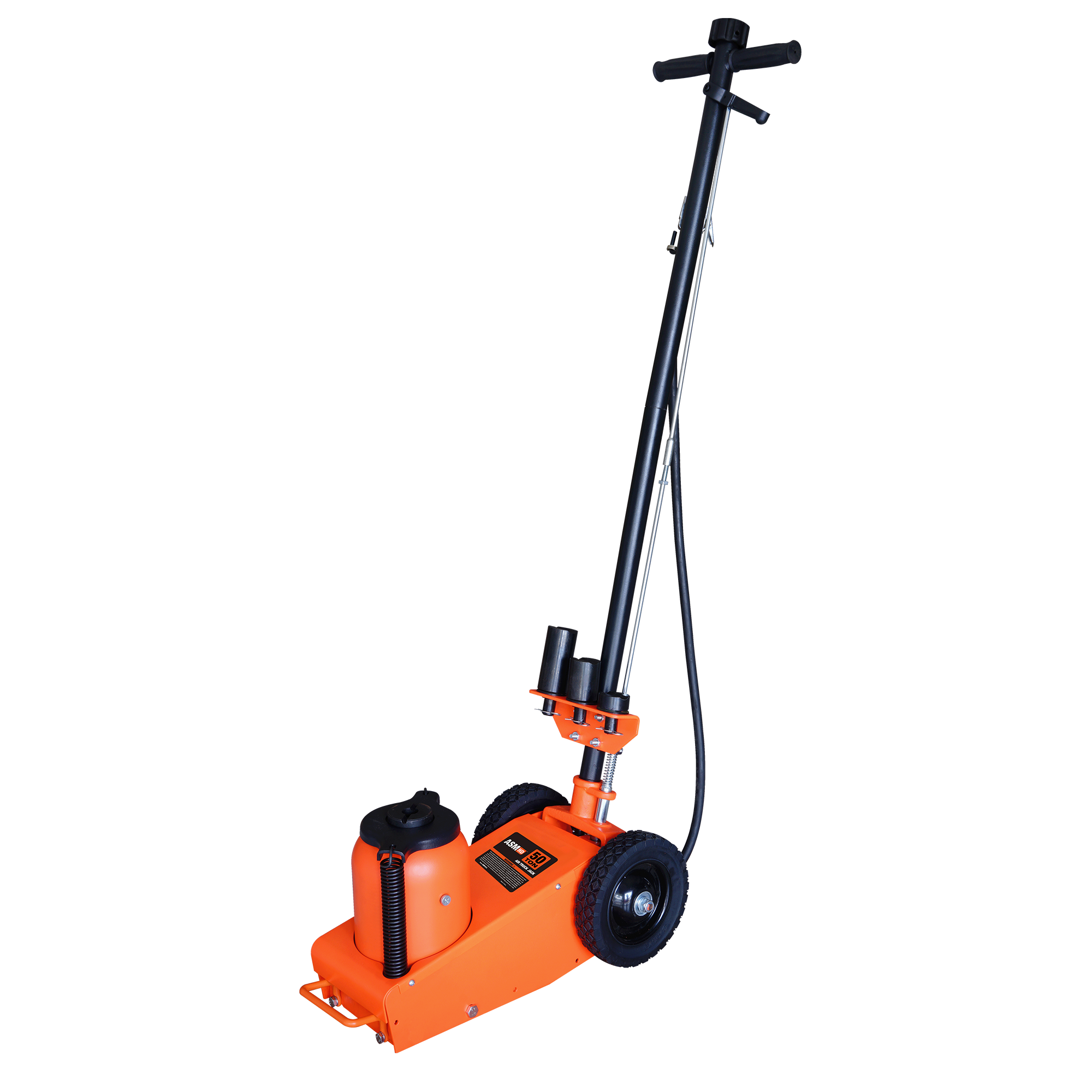

50 Ton Spring Return Air Truck Jack - ASM2806
Model: ASM2806
BEST SELLER!
Features
Spring return for fast and controlled self-retraction
Fully welded pump provides superior strength and extended service life
Includes three 2 in. diameter adapters (.8 in / 2.4 in / 3.9 in)
Large heavy-duty air motor for FAST lifting
Handle locks in vertical, 45' and horizontal positions
Release knob works in any position
Large 8" diameter hard rubber wheels
Chrome plated piston rod and pump core for longer service lift
Specifications
Capacity (Ton): 50
Min Height (in): 11 1/2
Max Height (in): 21 5/8
Ram Travel (in): 6 1/8
Screw Adj (in): 4
Handle Length (in): 48 3/8
Adapter Sizes H1/H2/H3 (in): 0.8/2.4/3.9
Air Pressure (PSI): 110 - 120
Package Dimensions (in): 26.8 x 14.2 x 12.2
20' CTNR QTY: 336
N.W. (lbs): 117
G.W. (lbs): 128
